Loại sản phẩm: Hans-schmidt

Mã sản phẩm: Tension Meter DX2

Nhà cung cấp: ANS Vietnam

Xuất Xứ: Chính hãng

Hãng sản xuất: Hans-schmidt Vietnam

Giá : Vui lòng liên hệ

10 Tension ranges from 10 - 50 cN to 5 - 20 daN

Universal mechanical tension meter for versatile applications in textile, fibre and wire industry. Versatile useable tension meter.

Application area in textile industry: e. g. 25 up to max. 20000 tex
Application area in wire industry: e. g. 0.05 up to max. 1.7 Ø mm copper wire

Best selling tension meter worldwide

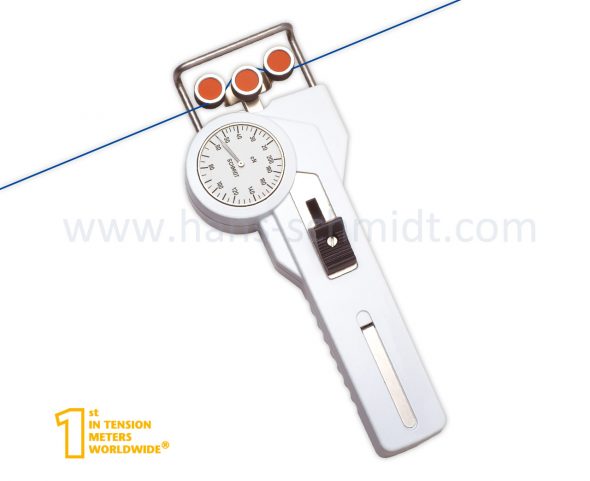

Tension meter DX2

Model Information

» Calibration Report (optional)

Print version

Special Features

The analog display shows changing and fluctuating tensions fast and enables an optimal process adjustment
The built-in material thickness compensator compensates different material diameters for a particular range (only DX2-1000 and higher ranges).

material thickness compensator tension meter DX series

Material thickness compensator: For better accuracy the
material to be measured or a similar material with the same
diameter should be inserted.

Filament guide and roller shifting mechanism ensure easy acquisition of the running material
Hand-held unit with built-in mounting holes permit fixed installation for continuous tension measurement
Special finger support located on the rear side reduces the effort to move the outer roller assembly

Finger Support: We recommend
mounting a finger support for
higher tension ranges

Custom-built configurations and special calibration are available

Standard Features

Everything in operator’s view:
- the guide rollers
- the measured material
- the readings
Ball-bearing mounted, V-grooved guide rollers
Each instrument is individually calibrated for highest accuracy
41 mm Ø scale
Tension meter with rugged aluminium housing
Certificate of Compliance with the order 2.1 according EN 10204 is included
Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report

SCHMIDT has the solution to any tension measuring problem! Please contact us to discuss your application requirements. Special designs are available.

To assist you in selecting the right tension meter for your specific application, please furnish:
- description of your application
- kind and dimensions of the material to be measured
- expected tension range
- line speed of the material to be measured
- material sample of about 5 m

Photo Gallery

Model DX2 is available with different measuring head widths from 66 mm up to 216 mm

<b>Model DX2-120</b> with measuring head width 66 mm

<b>Model DX2-10K</b> with measuring head width <br />116 mm

<b>Model DX2-20K-L</b> with special lever Code L for easy use at high ranges, measuring head width 216 mm

Available Models

Model	Tension Ranges cN	Measuring Head Width* mm	SCHMIDT Calibration Material**	Material thickness compensator
DX2-50	10 - 50	66	PA: 0.12 mm Ø	no
DX2-120	20 - 120	66	PA: 0.12 mm Ø	no
DX2-200	20 - 200	66	PA: 0.12 mm Ø	no
DX2-400	20 - 400	66	PA: 0.20 mm Ø	no
DX2-1000	50 - 1000	66	PA: 0.30 mm Ø	yes
DX2-2000	200 - 2000	116	PA: 0.50 mm Ø	yes
DX2-5000	400 - 5000	116	PA: 0.80 mm Ø	yes
DX2-8000	1000 - 8000	116	PA: 1.00 mm Ø	yes
DX2-10K	2.5 - 10 daN	116	PA: 1.00 mm Ø	yes
DX2-20K-L	5 - 20 daN	216	PA: 1.50 mm Ø	yes

Other tension ranges and measuring head widths available on request.
Other units of measure available - g or kg.
* Depending on model, either width of filament guide or outer distance between outside guide rollers
** Suitable for 95 % of applications - PA = Polyamide Monofilament

Calibration to customized material:
If process material differs significantly from the SCHMIDT calibration material in diameter, rigidity or shape, special calibration using customer supplied samples is recommended. For this purpose a material sample of about 5 m should be supplied.

Scales

Click to get larger image

Model DX2 - 50

Model DX2 - 120

Model DX2 - 200

Model DX2 - 400

Model DX2 - 1000

Model DX2 - 2000

Model DX2 - 5000

Model DX2 - 8000

Model DX2 - 10K

Model DX2 - 20K

SCHMIDT scales are manufactured according to the most stringent quality requirements. Printed scales are not used. Instead, each scale is individually marked for the instrument involved. This ensures highest quality. Our special procedure makes it possible to provide tension meters

calibrated to custom supplied material
fine tuned to a specific tension range
other units of measure such as g or kg

Guide Rollers

Order-Code

Line Speed

...m/min

Roller Material

Standard	2000	Hardcoated aluminium
Code K	3500	Hardcoated aluminium
Code H	5000	Plasma-coated aluminium (model DX2-120 and higher)
Code T	1000	Plastic (POM) black
Code W	1000	Nickel-plated steel
Code ST	1000	Hardened steel
Code B	1000	Tempered steel
Code CE2	1000	Aluminium ceramic-coated
Code ASY	1000	Hardcoated aluminium, asymmetrical groove Gauge without filament guide (model DX2-120 and higher)
Code ASYB	1000	Tempered steel, asymmetrical groove Gauge without filament guide (model DX2-120 and higher)
Code U	2000	Hardcoated aluminium (radius R3)

Click the order-code, to get picture and drawing of the guide rollers

Spare Rollers

Guide Rollers

Click picture to get an
overview for the guide rollers

Attachment

Code A

Air damping
(for tension range from 20 - 120 cN up to max. 400 - 5000 cN)
for steady reading when tension fluctuates

Click picture for more information

Code L

Special Lever
(Standard for tension range 5 - 20 daN and higher)

Click pictures for more information

Code M

Memory Pointer
(tension range 20 - 120 cN and higher)
Retains the highest measured value (PEAK). Available for mechanical tension meters

Calibration Report (optional)

Calibration Report

Inspection Certificate 3.1 according DIN EN 10204
including a calibration report is optional available

Click picture for more information

Ordering Example

To place an order	Model with tension range		Code for guide rollers (if not standard)		Code attach- ment		Complete Order No.
Please indicate the com- plete order number.:	DX2-400	+	H	+	A-M	=	DX2-400-H-A-M

Delivery Includes

scope of delivery tension measuring device DX2:

Tension meter with carrying case, operating instruction in german or english (as requested), Certificate of compliance with the order 2.1 according EN 10204 free of charge

Dimensions

For PDF-file please
click picture

Specifications

Calibration:	According to SCHMIDT factory procedure
Accuracy:	±1 % full scale or ±1 graduation on scale
Scale diameter:	41 mm
Temperature range:	10 - 45 ºC
Air humidity:	85 % RH, max.
Housing material:	Die-cast aluminium
Dimensions:	See dimensions above
Weight, net (gross):	Up to DX2-10K approx. 470 g (1000 g) DX2-20K-L approx. 580 g (2000 g)

Specifications subject to change without notice!
